Suitable for
Brass, aluminium, zamak

Works
Grinding, finishing

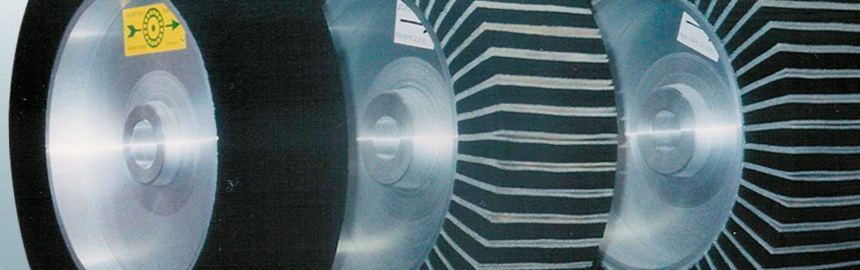

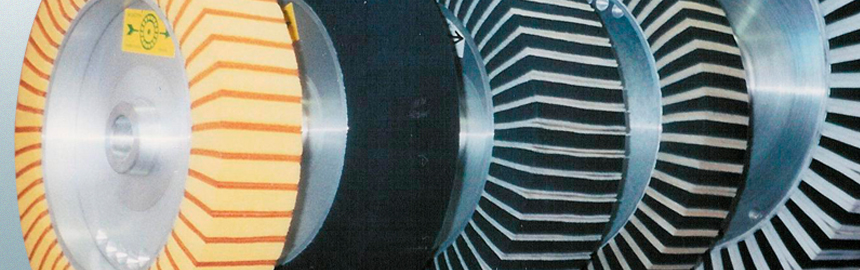

The Vulkollan® and Neoprene contact wheels are made with an aluminum hub coated with flaps of both materials. The wheels coating softness is made by the width of the Vulkollan® flaps.
It's mainly indicated for grinding and finishing of of rounded pieces and shapes requiring high quality and high precision works.

Ø

WIDTH

70

15 20 30 40 50 60 70 80 90 100 110 120 130

90

15 20 30 40 50 60 70 80 90 100 110 120 130

100

15 20 30 40 50 60 70 80 90 100 110 120 130

120

15 20 30 40 50 60 70 80 90 100 110 120 130

150

15 20 30 40 50 60 70 80 90 100 110 120 130 140 150

200

15 20 30 40 50 60 70 80 90 100 110 120 130 140 150

250

15 20 30 40 50 60 70 80 90 100 110 120 130 140 150

300

15 20 30 40 50 60 70 80 90 100 110 120 130 140 150

350

15 20 30 40 50 60 70 80 90 100 110 120 130

400

15 20 30 40 50 60 70 80 90 100 110 120

450

15 20 30 40 50 60 70 80 90 100 110 120

500

15 20 30 40 50 60 70 80 90 100 110 120
Neoprene contact wheels
Morettini Fabrizio - Ruote di contatto in Neoprene

Suitable for
Brass, aluminium, zamak

Works
Finishing for shaped pieces

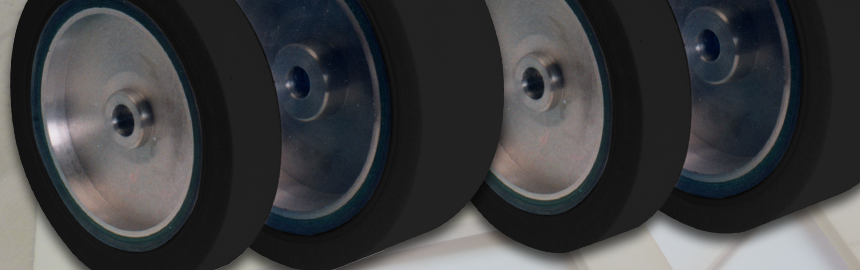

The Neoprene contact wheels are mainly indicated for polishing and finishing using high and very high grain abrasive belts in low-speed production, to obtain the best quality.

Ø

WIDTH

150

15 20 30 40 50 60 70 80 90 100 110 120 130 140 150

200

15 20 30 40 50 60 70 80 90 100 110 120 130 140 150

250

15 20 30 40 50 60 70 80 90 100 110 120 130 140 150

300

15 20 30 40 50 60 70 80 90 100 110 120 130 140 150

350

15 20 30 40 50 60 70 80 90 100 110 120 130

400

15 20 30 40 50 60 70 80 90 100 110 120

450

15 20 30 40 50 60 70 80 90 100 110 120

500

15 20 30 40 50 60 70 80 90 100 110 120
